How Much Spill Containment Do I Need? Calculating Capacity

The Basic Capacity Calculation

The foundation of spill containment sizing is the EPA's "110% rule" which requires secondary containment to hold at least 110% of the largest container's capacity within the containment area. This extra 10% accounts for displaced volume from tank foundations, piping supports, and potential liquid expansion. For example, if your largest tank holds 10,000 gallons, your containment system must hold at least 11,000 gallons of liquid.

When multiple tanks share a containment area, use the larger of two calculations: either 110% of the largest tank, or 100% of the largest tank plus 10% of all other tanks in the same area. This approach recognizes that while a catastrophic failure typically affects only one tank, smaller leaks from multiple sources could accumulate. The calculation ensures adequate capacity for realistic worst-case scenarios.

Additional volume requirements include freeboard for precipitation. Most regulations require maintaining at least one foot of freeboard above the calculated spill volume, though some areas with heavy rainfall may require more. This prevents precipitation from displacing containment capacity when you need it most.

Don't forget to account for permanent obstructions within the containment area. Tank foundations, pipe supports, electrical conduits, and other fixed structures reduce available containment volume. Measure these displacement volumes carefully, as they can significantly impact your effective containment capacity, especially in smaller systems.

Understanding Different Containment Methods

Bermed containment systems use earthen or concrete walls to create containment areas around storage tanks. Calculate volume by determining the area within the berm walls and multiplying by the height to the spillway or overflow point. Account for tank foundation displacement and any slopes designed for drainage. Bermed systems work well for larger tanks but require careful attention to drainage and access requirements.

Concrete pad containment involves sloped concrete surfaces that direct spills toward collection sumps or drains. Calculate the total volume that can pond on the pad surface before overflowing, including sump capacity. These systems excel in areas requiring frequent cleaning or where contaminated runoff must be captured, but typically require more complex drainage systems.

Vault containment places tanks within concrete or steel structures that completely surround the storage vessel. Calculate internal vault volume minus tank displacement and required freeboard. Vaults provide excellent containment for underground or partially buried tanks but require careful ventilation and access planning for maintenance operations.

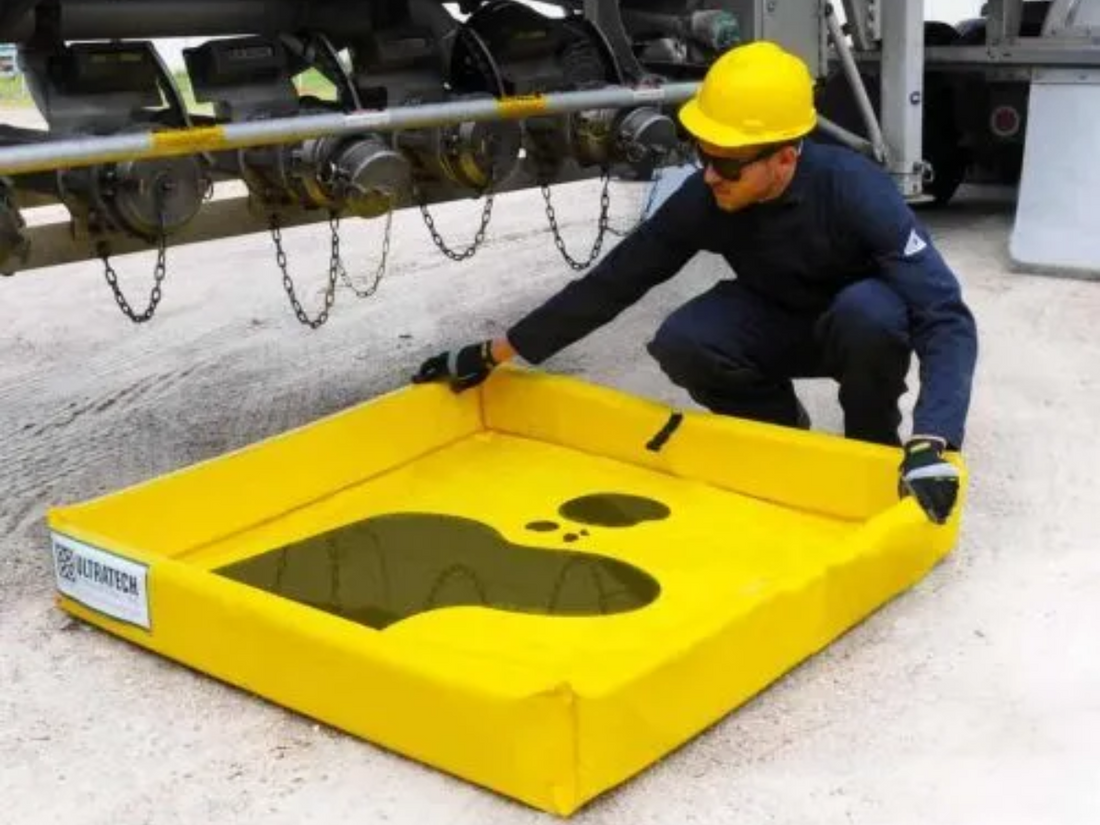

Portable containment systems like flexible berms or rigid barriers offer temporary or supplementary protection. Size these systems based on the specific equipment or operations they protect, considering both storage capacity and potential transfer volumes. While portable systems provide flexibility, ensure they meet the same capacity requirements as permanent installations when used for primary containment.

Special Considerations for Tank Configurations

Aboveground storage tanks (AST) in open containment areas follow standard 110% calculations, but consider additional factors like wind effects on floating roof tanks, thermal expansion in heated storage, and potential sloshing during seismic events. Floating roof tanks may require additional capacity calculations based on roof sinking scenarios, where the roof could displace significant liquid volume.

Underground storage tanks (UST) with secondary containment require different calculations based on the containment method. Double-wall tanks with interstitial monitoring need containment sized for the primary tank capacity, while vault-contained USTs follow standard 110% rules. Consider hydrostatic effects if groundwater could impact containment effectiveness.

Tank farms with multiple large storage vessels present complex containment challenges. While regulations allow shared containment areas, practical considerations may favor subdividing large tank farms into smaller containment areas. This approach limits potential spill volumes, simplifies emergency response, and may reduce required containment capacity through the multiple-tank calculation method.

Process equipment like separators, heaters, and pumps within containment areas require special attention. These systems may contain significant oil volumes but aren't always considered in initial capacity calculations. Include process equipment volumes when determining total containment requirements, especially for equipment that could fail catastrophically during tank releases.

Factors That Increase Capacity Requirements

Precipitation management significantly impacts containment capacity requirements. Areas with heavy rainfall, snow accumulation, or seasonal flooding may need substantially larger containment volumes to maintain required freeboard. Some regulations require designing for 25-year storm events, which can double or triple basic containment requirements in high-precipitation areas.

Transfer operations often require additional containment capacity beyond basic storage requirements. Loading and unloading areas, pump stations, and piping systems may need separate containment sized for potential transfer volumes. Consider both equipment capacity and time-based calculations—how much product could be released before emergency shutdown systems activate?

Future expansion plans should influence current containment design. Building oversized containment systems during initial construction typically costs less than retrofitting later. Consider planned storage increases, additional tank installations, or operational changes that might affect containment requirements. Design flexibility into systems where possible.

Environmental sensitivity of the surrounding area may drive requirements beyond minimum regulatory standards. Facilities near drinking water sources, sensitive ecosystems, or populated areas often need enhanced containment capacity. Some permits require containment sufficient for multiple tank failures or extended response times in remote locations.

Local drainage conditions affect both containment sizing and design. Areas with poor soil drainage may require larger freeboard allowances, while locations with rapid drainage might need enhanced leak detection. Consider seasonal variations in groundwater levels, soil saturation, and surface water flow patterns when sizing containment systems.
